Solar fuse PV fuse DC fuse DC1000V fuse Tomzn in Pakistan
$20.47
$33.98

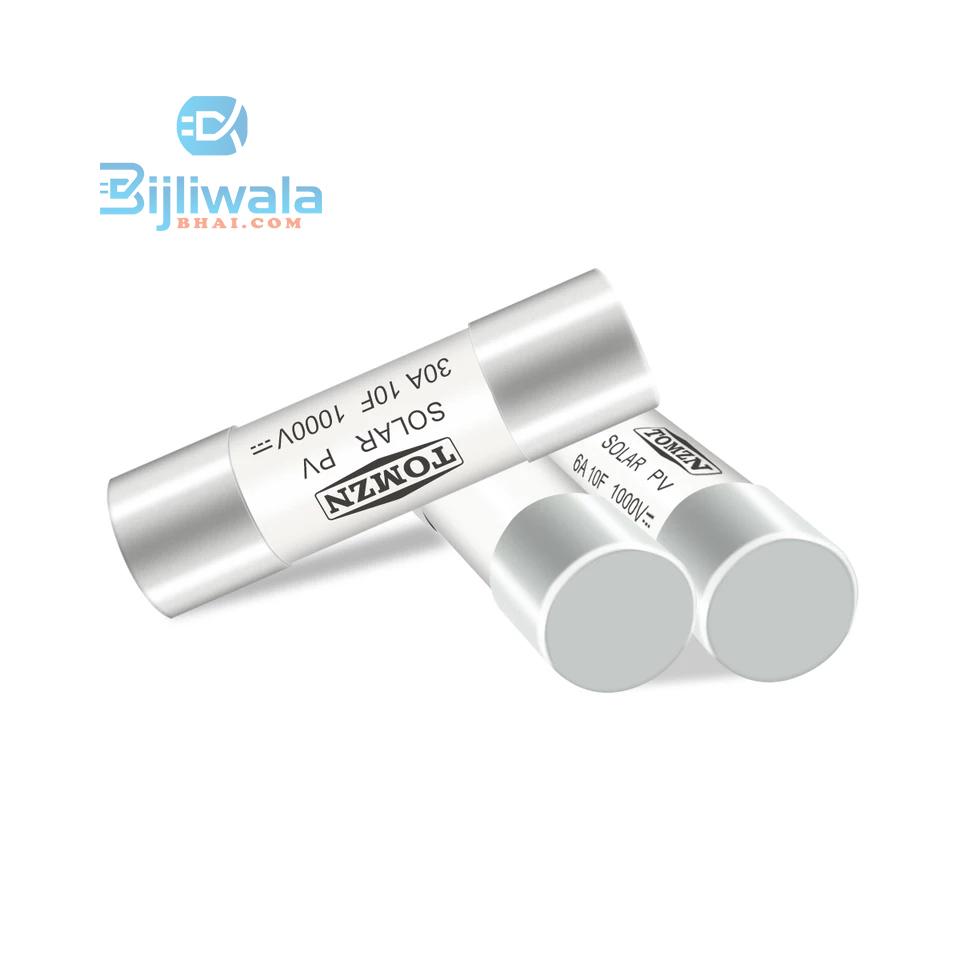

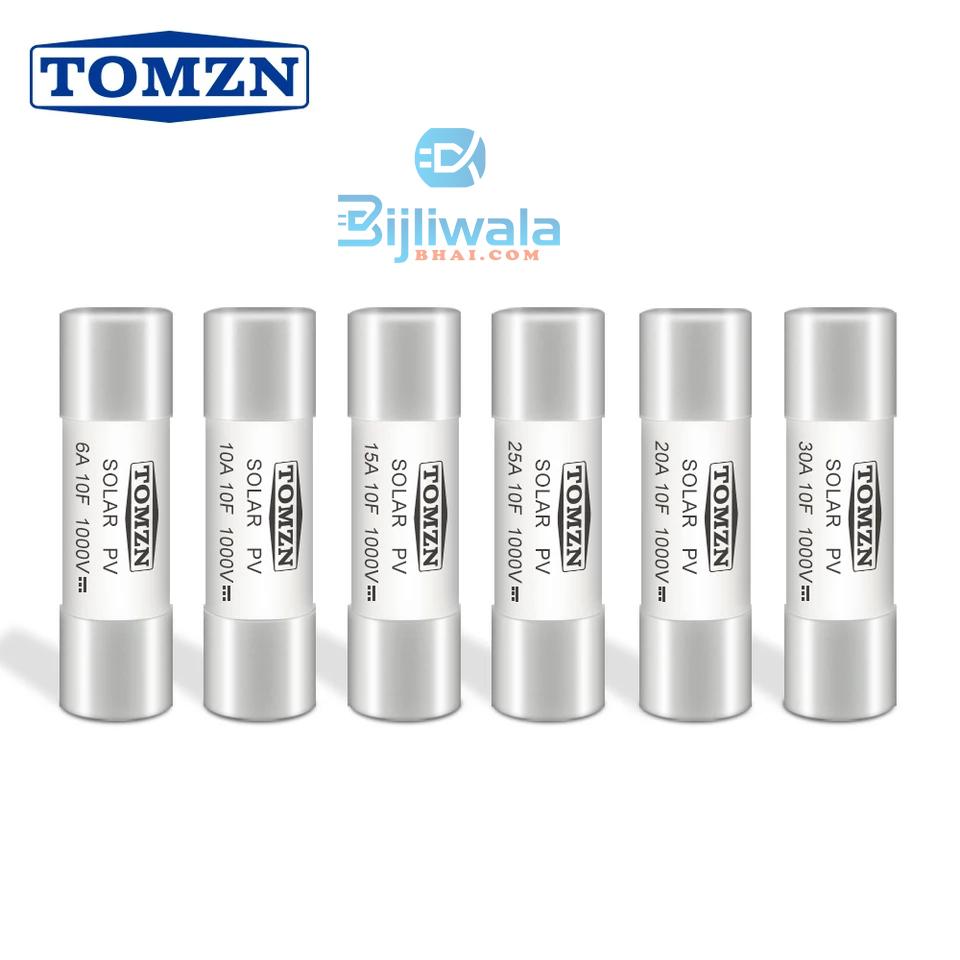

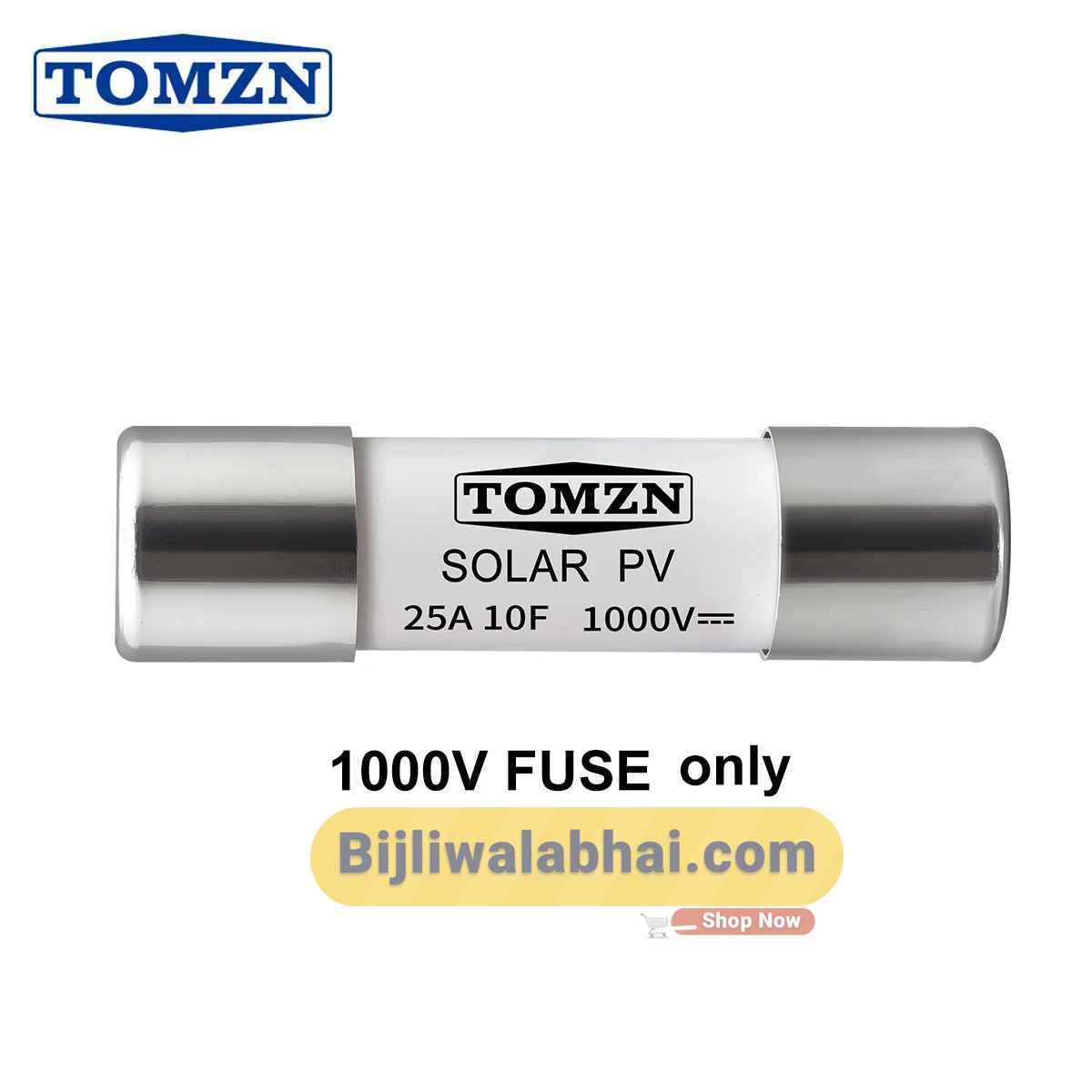

PV String Fuses for solar panels – 1000VDC A range of fuses in a 10x38mm package specifically designed for the protection and isolation of photovoltaic strings. The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays. Applications Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminals on any photovoltaic string rated up to 1000VDC Electrical Characteristics Rated voltage 1000VDC Amps 15A, 20A ,25A & 30A Rated braking capacity 33kA dc Minimum interrupting rating 1.3x In The time constant under 1ms
