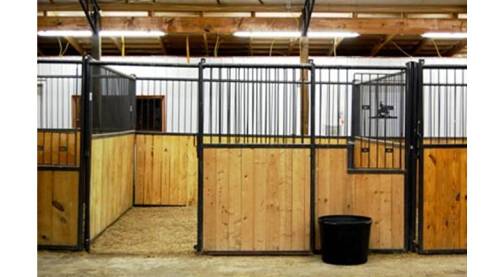

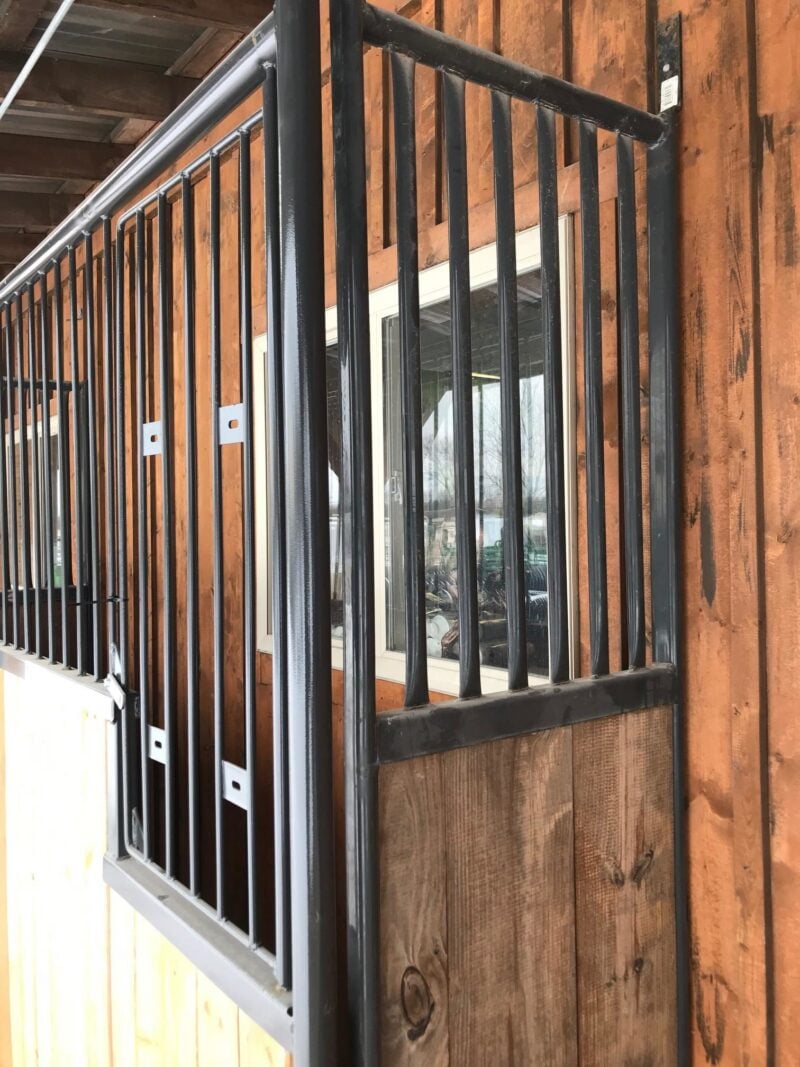

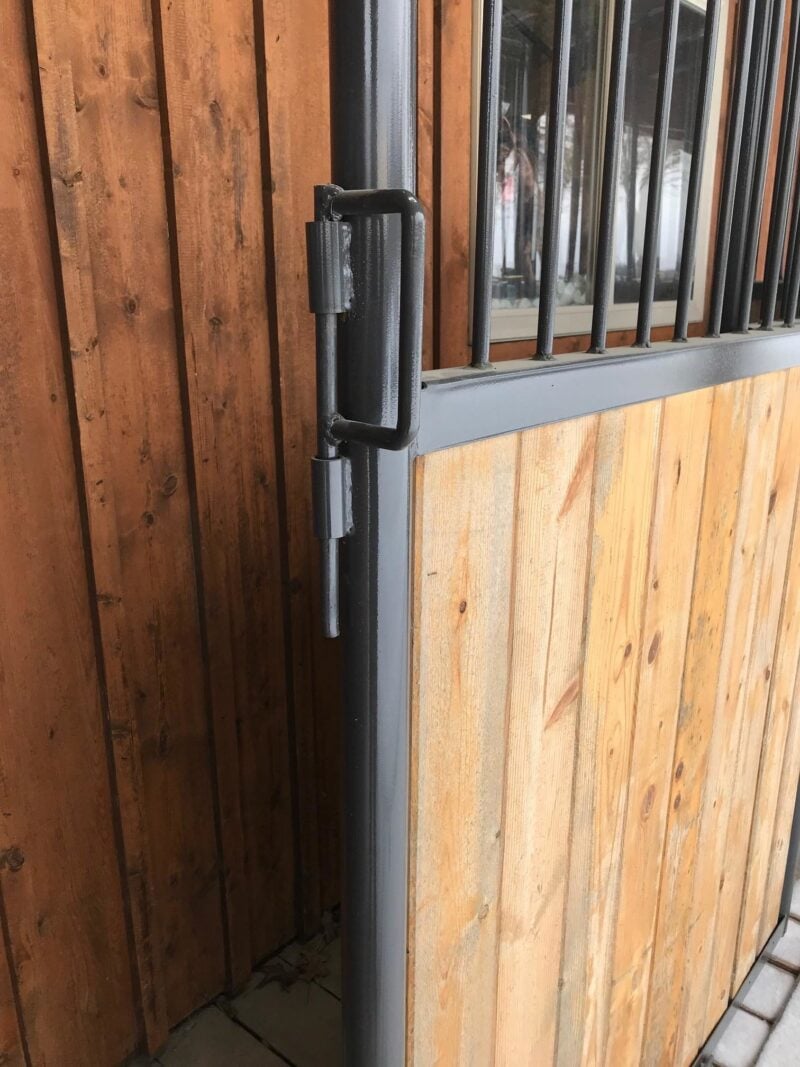

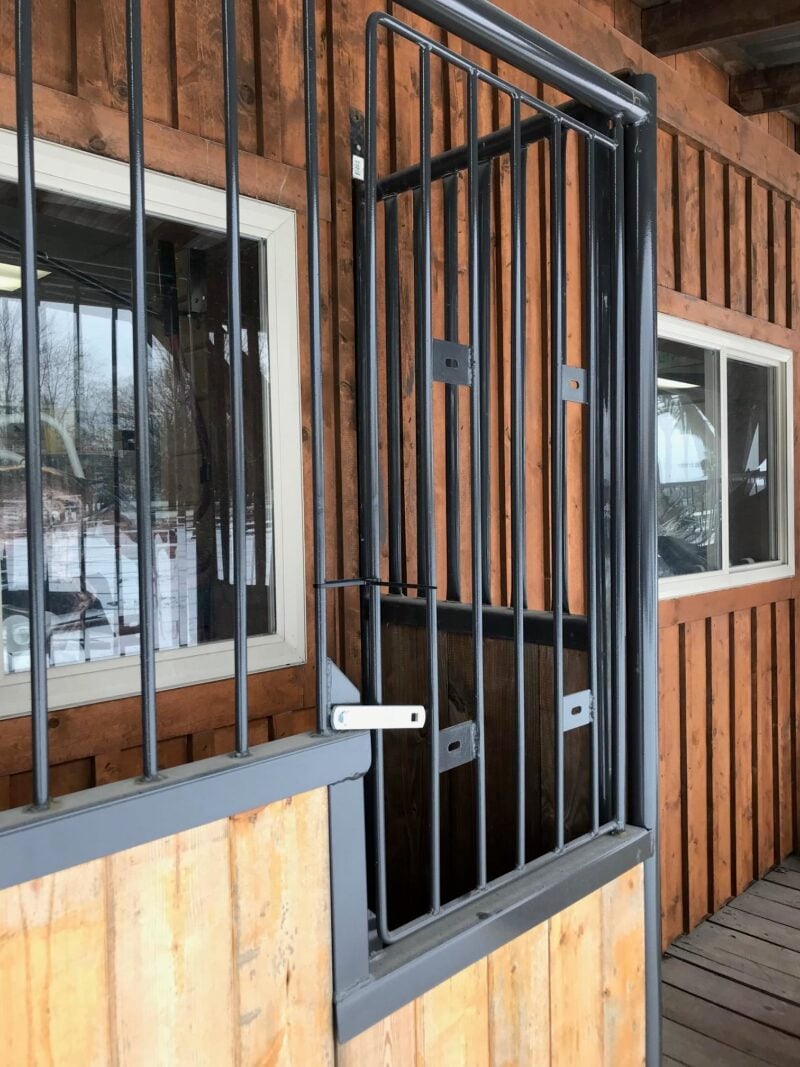

These horse stalls can be mounted or stand on their own which makes them great for temporary or permanent use. Designed with safety in mind, our Equestrian World Horse Stall can be ordered as separate or complete units. These are standard with gray powder coat. Fronts Include: 4′ wide sliding door Swing out feed door 1/2″ solid steel bars that are spaced 3 1/2″ apart Flat doorway threshold to prevent stumbling Unique latches with no sharp protrusions Actual Dimensions: 12′ Front/Sides – 144 1/2″ L 10′ Front/Sides – 117 5/8″ L Both Front/Sides – 7′ H Weights: 12′ Front – 234 lbs 12′ Side w/ Bars – 141 lbs 12′ Solid Side – 159 lbs 10′ Front – 207 lbs 10′ Side w/ Bars – 121 lbs 10′ Solid Side – 145 lbs Using Recommended Lumber Ponderosa Pine 2″ x 6″ x 12′ tongue and groove boards: 10′ Front: 9 boards 10′ Bar Side: 9 boards 10′ Solid Side: 18 boards 12′ Front: 11 boards 12′ Bar Side: 11 boards 12′ Solid Side: 22 boards Brackets: https://cashmans.com/product/horse-stall-brackets/
